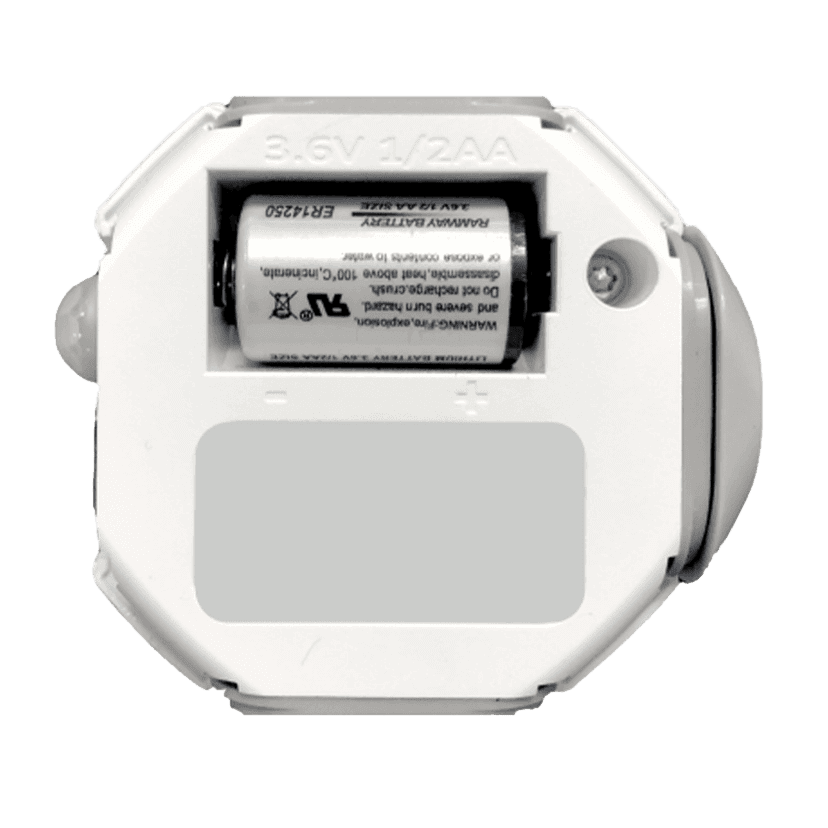

Mini IAQ (Indoor Air Quality) Sensor

Mini IAQ (Indoor Air Quality) Sensor

Breathe better with our smart indoor monitoring.

Our compact, wireless sensor helps you understand and improve the quality of the air within enclosed spaces. It not only measures the room temperature, but also the humidity and air quality itself through detecting the amount of volatile organic compounds (TVOC) that are present in real time — which makes it perfect for closed spaces such as schools, offices, hospitals, shopping malls and public buildings.

Key Benefits :

🌡️ Measures temperature, relative humidity, and indoor air quality (TVOC)

📶 Wirelessly transmits data using low-power, long-range LoRaWAN®

🔧 Compact and easy to install – no wiring or wall work needed

✅ Ideal for smart buildings, environmental monitoring, and energy efficiency

Specifications

Weight
30g (without battery), 40g (with battery)
IP Rating
IP40 equivalent
Dimensions
50mm x 20mm x 50mm
Operating Temperature
0°C to +50°C

Sensor Parameters

Certifications
FCC ID: 2AMUGTBSP100, IC: 22980-TBSP100, CE, ROHS, REACH
Measured Parameters
Temperature, Relative Humidity, Indoor Air Quality

LoRaWAN Parameters

Channels
863–870MHz (EU), 902–928MHz (US)
TX Power
EU: +17 dBm, US: +19 dBm
ISM Bands
EU868 / US915
RX Sensitivity
-135 dBm

Electrical Parameters

Current
Max: 135 mA / Min: 100 µA
Battery Type
3.6V 1⁄2 AA Li-SOCl2 1200mAh
Maximum Voltage
3.6 V
Minimum Voltage
3.1 V
Battery Monitoring
Yes

Implementations

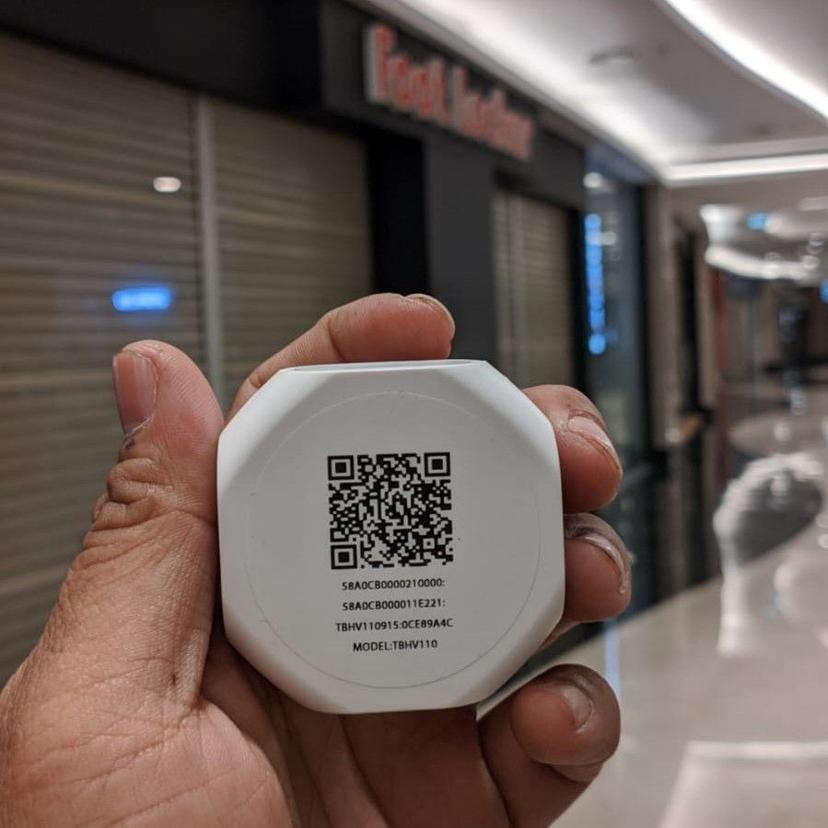

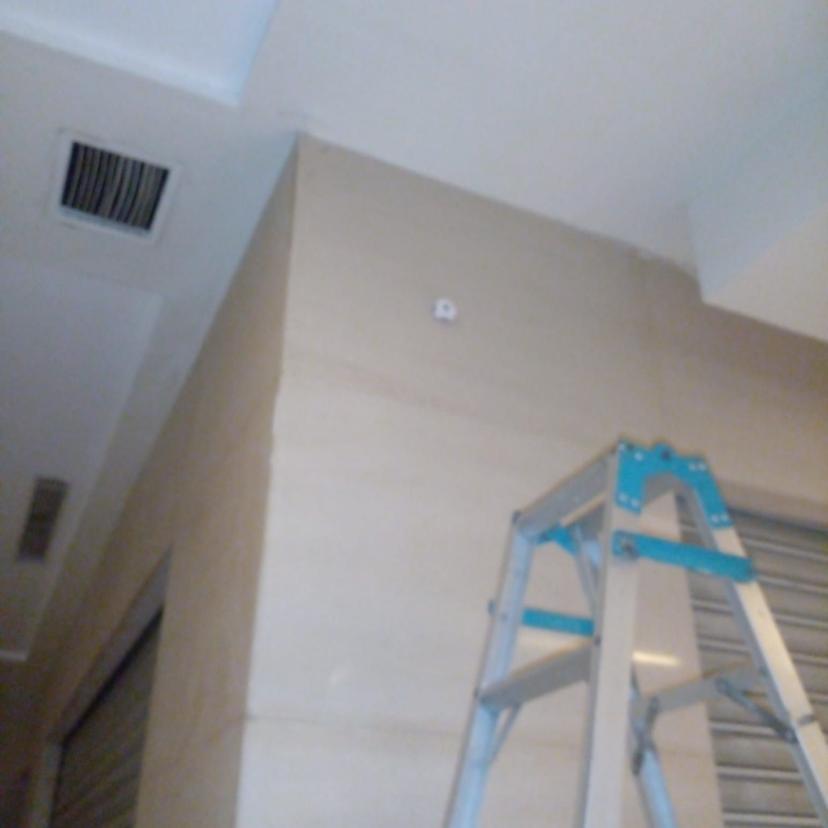

metro lantai1.jpegWhatsApp Image 2023-03-31 at 13.41.22 (2).jpegWhatsApp Image 2023-03-31 at 13.41.19 (1) (2).jpeg
